- View Mobile Number
3,300.00 / Set
| Business Type | Manufacturer, Exporter, Supplier |
| Size (Inches) | ~½″- 3″ |
| Country of Origin | India |
| Type | Industrial Seals |
| Click to view more | |
Product Details
Surface of Application
Industrial
Color
Silver,Black
Shape
Round
Material Grade
SS304
Finishing
Polished
Material
Stainless Steel
Condition
New
Pressure
up to 14 bar .
Automation Grade
Manual
Usage
Pumps, compressors, mixers, HVAC, water/waste treatment
Certification
ISO 9001:2008 Certified
Packaging Type
Carton Box
Working Pressure
14 bar
Sealing Type
Mechanical
Working Temperature
−40 °C to +205 °C
Shaft Diameter
12.7–76.2 mm
Warranty
1 Year
Temperature
−40 °C to +205 °C
Tolerance
−40 °C to +205 °C
Speed
13 m/s
Chemical Resistance
Yes
Pressure (Bar)
15 Bar
Shaft Speed in RPM
2,500 fpm
Temperature Range Deg C
−40 °C to +205 °C
I Deal In
New Only
Product Code
84842000
Port
DIRECT or Courier
Delivery Time
1 or 2 days
Packaging Details
Safely pack in carton box

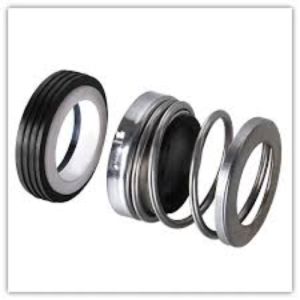

The Type 21 mechanical seal (also styled 21 T) is a single-end, elastomer bellows mechanical seal, originally developed by John Crane and now a de facto industry standard . It’s compatible with a broad range of rotating equipment, including centrifugal, rotary, and turbine pumps, mixers, compressors, chillers, and agitators. Common application areas include water treatment, pulp & paper, food & beverage, wastewater, HVAC, pool/spa systems, and general industrial processes
-
Versatility in mounting and pump compatibility.
-
Low leakage due to balanced face loading.
-
Self-compensation for wear, run-out, and axial movement.
-
Minimal clogging from outside-spring and bellows design.
-
Field-serviceable, with easily replaceable parts.
Looking for "21 T Mechanical Seal" ?
