Product Details

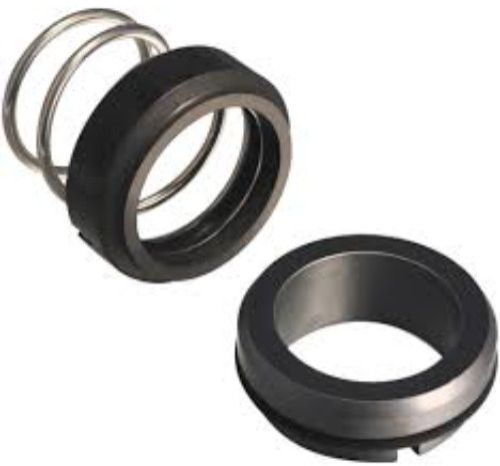

The Burgmann M2N is a single-end, unbalanced, conical‑spring O‑ring pusher seal, commonly used in circulating pumps and heating systems. Its spring-driven torque design allows operation independent of shaft rotation direction, and no set screws means no shaft damage during installation
-
Operating Range:
-
Shaft diameter (d₁): 6–38 mm (0.25–1.5 in) .
-
Pressure: up to 10 bar (145 psi), with some spec sheets listing 0–1.0 MPa (~10 bar) .
-
Temperature: –20 °C to +140 °C, with some designs capable of up to +180 °C depending on materials .
-
Sliding velocity: ≤15 m/s (~50 ft/s) .
-
Axial compensation: ±1 mm to accommodate movement .
-
-
Hardness: Carbon ~600 HV; SiC ~2,500 HV; alumina ceramic ~1,900 HV (approx)
-
Intended Use: Suited for non-aggressive fluids in circulating pumps, heating systems, water treatment, and HVAC applications .
-
Advantages:
-
Economical option for plain shaft assemblies
-
No shaft damage risk—no set screws needed
-
Short installation makes it ideal for compact housings
-
