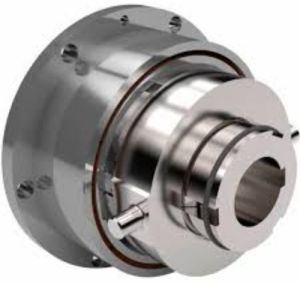

Clutch Type Seal

A clutch type seal is a specialized mechanical seal used primarily in rotating equipment like pumps, mixers, and compressors. It features a clutch mechanism that engages or disengages the seal face depending on the operational status of the equipment, such as starting, stopping, or running under specific conditions. The main goal of a clutch type seal is to improve reliability, reduce wear, and extend service life by controlling when the seal faces make contact.

In traditional mechanical seals, the seal faces are constantly in contact, even when the equipment is idle. This continuous contact can lead to unnecessary wear, increased friction, and potential damage during dry running (operation without lubrication). Clutch type seals solve this problem by incorporating a mechanism that separates the seal faces when the shaft is stationary or under low-speed conditions, minimizing wear and preventing damage. Once the shaft reaches operational speed, the clutch mechanism engages automatically, bringing the seal faces into proper contact to provide sealing.

Typically, clutch type seals are spring-loaded and use centrifugal force, magnetic force, or a combination of mechanical elements to control the clutch action. At lower speeds or when stopped, the springs may hold the seal faces apart. As the shaft rotates and centrifugal force increases, the clutch mechanism activates and pulls the seal faces together. Some designs also use magnetic clutches to achieve smooth, non-contact engagement and disengagement without physical wear on the actuation parts.

Clutch type seals are especially valuable in applications where the equipment frequently starts and stops, or where dry running at start-up is a concern. Common industries that use them include chemical processing, food and beverage, pharmaceuticals, water treatment, and oil and gas. They are often used with double seals or gas-lubricated seals where minimizing friction is critical for ensuring safe operation and reducing maintenance needs.

Advantages of clutch type seals include:

• Reduced Wear: By preventing unnecessary face contact when not needed, the seal faces last longer.

• Energy Efficiency: Less friction means lower power consumption.

• Dry Running Protection: By keeping faces apart during non-operational periods, the seal avoids heat buildup and scoring.

• Extended Service Life: Reduced wear and controlled engagement lead to longer seal and equipment lifespan.
