| Business Type | Manufacturer, Exporter, Supplier |
| Size (Inches) | 10 mm to 100 mm |
| Finishing | Polished |
| Usage | Industrial Use |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details

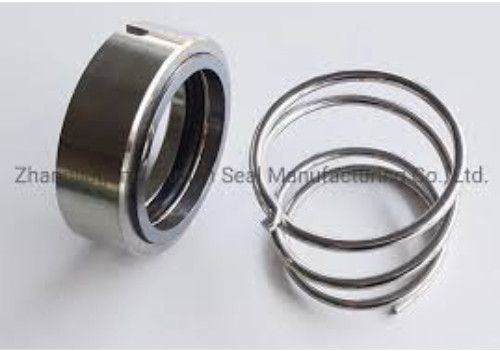

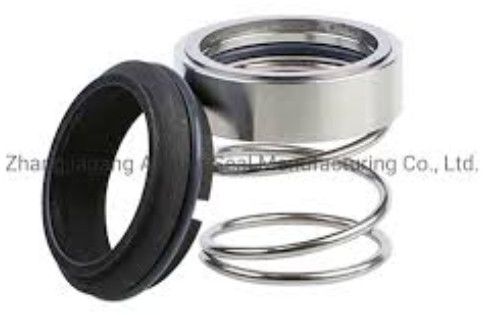

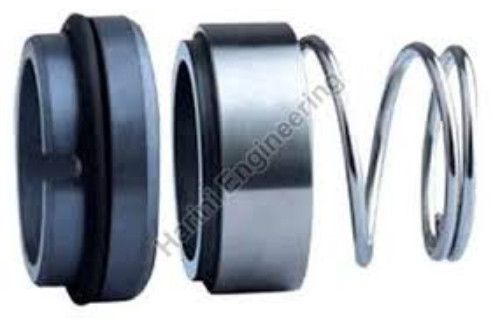

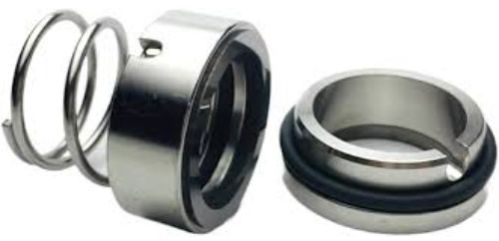

The HE Burgmann M37/M37G Replacement Seal is a high-performance, elastomer bellows mechanical seal designed to meet the sealing demands of a wide variety of rotating equipment. It serves as a direct interchangeable replacement for the original Burgmann M37 and M37G models, maintaining the same level of reliability, durability, and compatibility across various pump types and process conditions.
This seal features a single-spring, elastomer bellows design, which provides self-adjusting axial movement to accommodate shaft misalignment, vibration, and wear. The elastomer bellows also eliminates the need for dynamic O-rings, reducing the potential for secondary sealing issues. The M37 model is a single-directional seal, designed for clockwise shaft rotation, while the M37G variant is balanced, enabling it to operate effectively in higher-pressure systems.
The mechanical seal includes:
-
Rotary face: Typically made from high-grade Carbon, Silicon Carbide, or Tungsten Carbide
-
Stationary seat: Options include Ceramic, Silicon Carbide, or Tungsten Carbide
-
Secondary seal: Constructed from robust elastomers such as Nitrile (NBR), Viton (FKM), EPDM, or Kalrez, depending on chemical compatibility
-
Metal components: Stainless steel (SS304/SS316) for spring and retainer, ensuring corrosion resistance and mechanical strength
