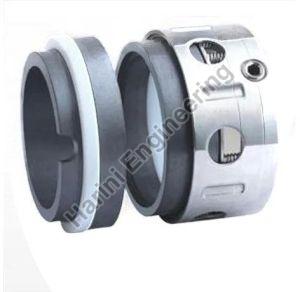

HE92B-53 Mechanical Seal

The HE92B-53 Mechanical Seal is a precision-engineered sealing unit designed to offer high reliability and durability in industrial rotary equipment. Commonly used in centrifugal pumps, chemical processing units, water treatment systems, and other rotating machinery, this seal model is tailored for applications that demand a robust sealing mechanism with resistance to harsh chemicals, high temperatures, and elevated operating pressures.

At the core of the HE92B-53’s design is its single balanced, pusher-type configuration, allowing it to maintain sealing integrity even under fluctuating operating conditions. The balanced design reduces face load pressure, which minimizes wear, frictional heat, and energy loss, thereby increasing seal life and operational efficiency. The pusher-type element is particularly beneficial in handling axial movements of the shaft caused by thermal expansion or process changes.

This seal is constructed from high-grade, corrosion- and wear-resistant materials. The primary sealing faces are typically composed of Silicon Carbide, Tungsten Carbide, or Resin-Impregnated Carbon, chosen based on specific fluid compatibility. These materials are known for their superior hardness and resistance to thermal shock, abrasion, and chemical attack. The mating ring is precisely lapped to ensure a leak-tight seal, even in demanding applications.

The secondary sealing elements, such as O-rings or gaskets, are made from elastomers like Viton, EPDM, or Nitrile (NBR). Each of these materials is selected for their chemical resistance and flexibility across a broad temperature range. The metallic components of the HE92B-53—springs, retainers, and gland plates—are fabricated from stainless steel grades SS316 or SS304, offering excellent structural integrity and corrosion protection.

The HE92B-53 Mechanical Seal is engineered to handle pressures up to 20 bar and shaft speeds of up to 3600 RPM, making it suitable for both moderate and high-speed applications. It operates effectively within a temperature range of -20°C to +180°C, ensuring performance in both chilled and heated fluid systems. Thanks to its high tensile strength and low leakage design, this seal helps reduce environmental risks and ensures process efficiency.

Its modular construction enables easy installation and maintenance. It conforms to international standards such as DIN 24960 and ISO 3069, ensuring compatibility with a wide range of pump models and facilitating global replacements. This makes the HE92B-53 a preferred choice for OEMs and MRO teams alike.

In terms of application, the HE92B-53 is suitable for sealing chemicals, solvents, hydrocarbons, slurries, water, and light oils. It finds extensive use in industries such as chemical processing, oil and gas, pharmaceuticals, pulp and paper, food and beverage, and general industrial operations.
