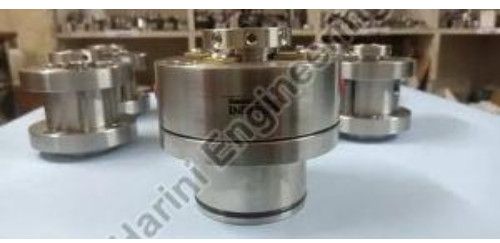

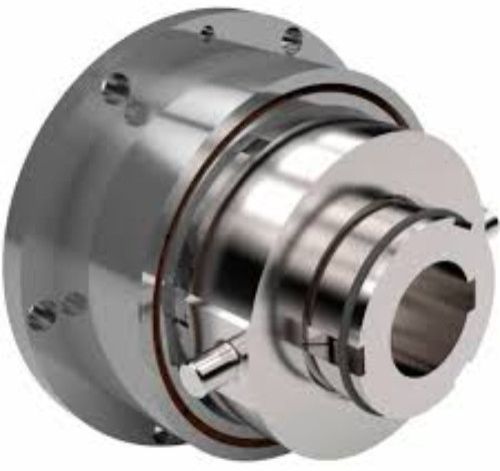

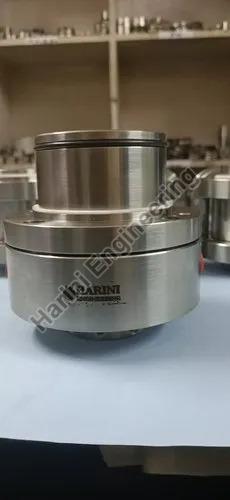

A clutch type seal is a specialized mechanical seal used primarily in rotating equipment like pumps, mixers, and compressors. It features a clutch mechanism that engages or disengages the seal face depending on the operational status of the equipment, such as starting, stopping, or running under specific conditions. The main goal of a clutch type seal is to improve reliability, reduce wear, and extend service life by controlling when the seal faces make contact.

In traditional mechanical seals, the seal faces are constantly in contact, even when the equipment is idle. This continuous contact can lead to unnecessary wear, increased friction, and potential damage during dry running (operation without lubrication). Clutch type seals solve this problem by incorporating a mechanism that separates the seal faces when the shaft is stationary or under low-speed conditions, minimizing wear and preventing damage. Once the shaft reaches operational speed, the clutch mechanism engages automatically, bringing the seal faces into proper contact to provide sealing.

Typically, clutch type seals are spring-loaded and use centrifugal force, magnetic force, or a combination of mechanical elements to control the clutch action. At lower speeds or when stopped, the springs may hold the seal faces apart. As the shaft rotates and centrifugal force increases, the clutch mechanism activates and pulls the seal faces together. Some designs also use magnetic clutches to achieve smooth, non-contact engagement and disengagement without physical wear on the actuation parts.

Clutch type seals are especially valuable in applications where the equipment frequently starts and stops, or where dry running at start-up is a concern. Common industries that use them include chemical processing, food and beverage, pharmaceuticals, water treatment, and oil and gas. They are often used with double seals or gas-lubricated seals where minimizing friction is critical for ensuring safe operation and reducing maintenance needs.

Advantages of clutch type seals include:

• Reduced Wear: By preventing unnecessary face contact when not needed, the seal faces last longer.

• Energy Efficiency: Less friction means lower power consumption.

• Dry Running Protection: By keeping faces apart during non-operational periods, the seal avoids heat buildup and scoring.

• Extended Service Life: Reduced wear and controlled engagement lead to longer seal and equipment lifespan.

A multi-spring CTFE (chlorotrifluoroethylene) bellows mechanical seal combines the robustness of multiple coil springs with a CTFE bellows that ensures reliable sealing under corrosive and variable-pressure conditions. The multi-spring arrangement distributes axial load evenly across the seal faces, while the CTFE bellows functions both as a secondary seal and a dynamic spring, eliminating O-ring friction and improving responsiveness

Springs exert uniform axial pressure to bring the rotating and stationary faces together, while the CTFE bellows compensate for wear and misalignment. As the shaft turns, a thin fluid film (<10 µm) forms between faces, minimizing friction and wear. Balanced design allows use in moderate pressures; the metal-supported bellows further assist with pressure balancing .

• Chemical Resistance: CTFE bellows excel in corrosive fluids—strong acids, alkalis, solvents—making these seals ideal for chemical, petrochemical, and wastewater applications .

• Axial Compensation & Self-Alignment: The bellows’ flexibility accommodates misalignment, shaft movement, and wear without O-ring drag.

• Redundancy & Reliability: Multi-spring setup ensures sealing even if one spring fails, offering robustness in dynamic or vibration-prone environments .

• Low Friction & Long Life: Combination of CTFE dynamic sealing and balanced face load results in lower heat and wear.

A multi‑spring mechanical seal uses several coil springs arranged circumferentially around the shaft to provide uniform axial pressure on the sealing faces. This design ensures even contact, enhanced stability, and improved sealing performance, especially compared to single‑spring configurations

The multiple springs press the rotating face into the stationary face, forming a microscopic lubricating fluid film (a few microns thick) when the shaft rotates . This film prevents direct contact, reducing wear and controlling heat. If one spring fails, the remaining springs maintain sealing pressure, providing redundancy and reliability.

• Uniform Pressure & Low Wear: Multiple springs distribute load evenly, minimizing stress and distortion for extended life and better seal integrity .

• Heat Dissipation & High RPM Capability: Enhanced cooling and fluid circulation allow safe operation at high shaft speeds (4 000–6 000 RPM or sliding velocities up to ~25 m/s) .

• Redundancy & Reliability: With multiple springs, a single spring failure doesn't immediately compromise sealing; overall durability improves .

• Versatile Material Options: These seals support varied face materials and elastomer combinations to match harsh fluids and elevated temperatures, making them ideal for chemical, oil & gas, and slurry applications .

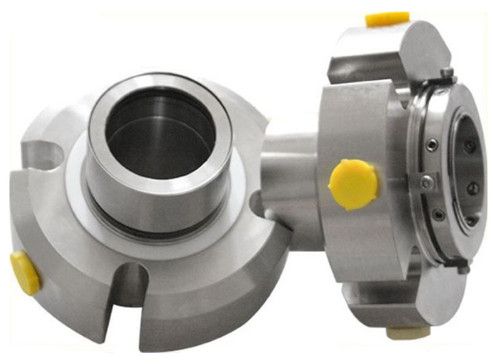

A Mechanical Chemical Seal is a specialized sealing device engineered to operate in highly corrosive and chemically aggressive environments. These seals are specifically designed for applications involving hazardous, toxic, or reactive chemicals that demand both superior chemical resistance and long-term reliability. Used extensively in chemical processing plants, pharmaceuticals, petrochemicals, and refineries, these seals prevent leakage of dangerous fluids while maintaining process integrity and safety.

Unlike general-purpose mechanical seals, chemical seals are constructed using advanced, chemically inert materials that can withstand extreme pH ranges, elevated temperatures, and high pressures. The goal is to provide a leak-free, low-maintenance sealing solution that meets stringent safety and environmental standards.

Mechanical seals are engineered marvels that blend precision machining, material science, and fluid dynamics to maintain integrity under rotating motion. From traditional water pump applications to high-pressure, high-temperature subsea installations, mechanical seals—especially those enhanced with balanced designs, cartridge assemblies, and DiamondFace® coatings—deliver the reliability essential for critical industries. Whether handling slurries, hydrocarbons, or reactive chemicals, these seals ensure safe, efficient, and low-maintenance operation.

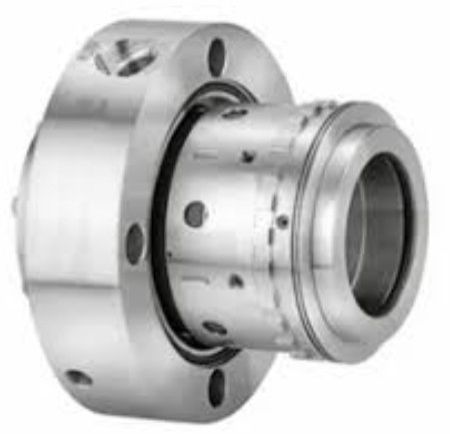

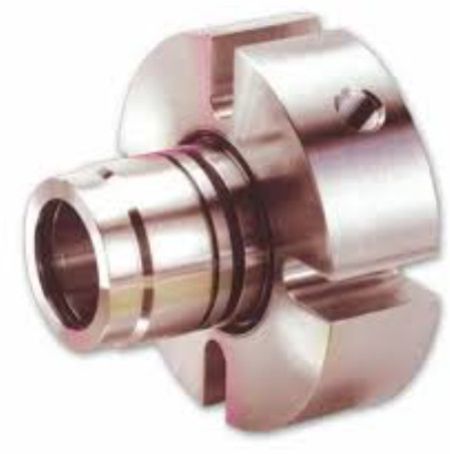

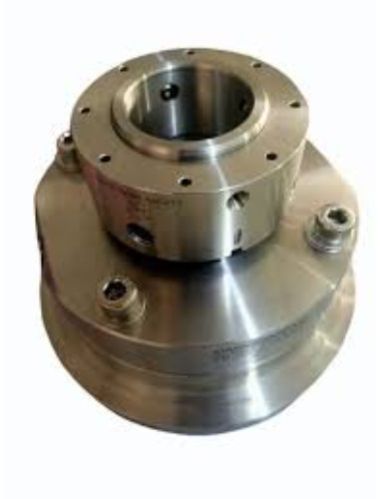

A mechanical seal is a dynamic component used to seal the junction between a rotating shaft (such as in pumps, compressors, agitators) and the stationary housing of machinery. Unlike static seals, it must contain fluid under pressure while accommodating shaft rotation. At its core are two precision‑machined flat rings—one attached to the shaft (rotating face) and one fixed to the casing (stationary face)—pressed together by springs or bellows. The fluid to be sealed enters the tiny interface between these faces, creating a lubricating film that prevents excessive wear and leakage

Advantages:

• Reliable sealing: Superior containment compared to simple lip or radial seals, especially under high pressure.

• Reduced friction and heat: Hydrodynamic lubrication protects against overheating.

• Durability: Modern coatings and balanced designs extend seal life.

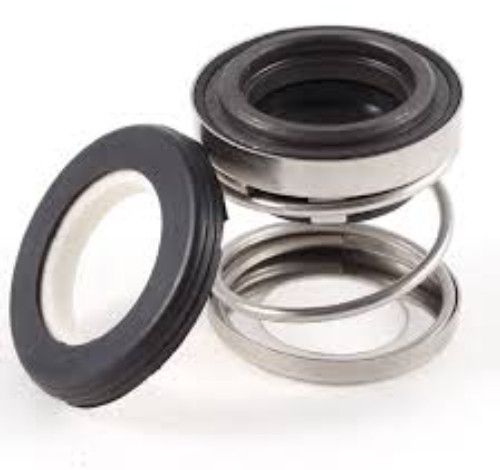

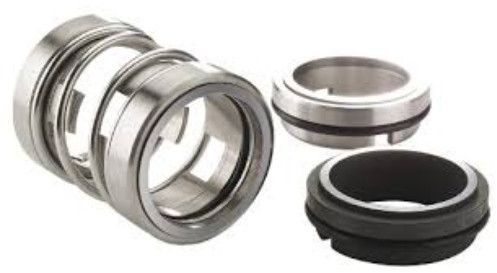

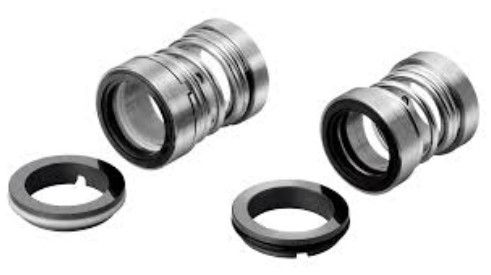

A Single Coil Mechanical Seal is a type of end-face seal used to prevent fluid leakage in rotating equipment, such as pumps, mixers, and compressors. It is one of the most widely used mechanical seal designs, known for its simplicity, efficiency, and cost-effectiveness. The term "single coil" refers to the presence of a single helical spring, which provides the necessary axial force to keep the seal faces in contact during operation.

This type of seal typically consists of a rotating face (often made of carbon, ceramic, or silicon carbide), a stationary face, and an elastomeric component such as an O-ring or rubber bellows. The coil spring allows for axial movement, compensating for shaft misalignment, vibration, and thermal expansion. The spring design also facilitates even loading across the seal faces, ensuring consistent sealing performance and extended service life.
