2,500.00 - 3,000.00 / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Industrial Seals |
| Usage | Industrial |
| Click to view more | |
Product Details
Color
Silver
Shape
Cylindrical with convoluted bellows
Material Grade
SS304
Finishing
Polished
Material
Stainless Steel
Condition
New
Pressure
Up to 82 bar (
Surface of Application
Industrial
Density
(SS ≈ 8 g/cm³; carbon ≈ 1.8 g/cm³
Packaging Type
Carton Box
Outer Diameter
~38–127 mm
Technique
Balanced bellows, single-coil spring, elastomer drive band, self-adjusting
Working Pressure
Up to 82 bar
Sealing Type
Single Spring
Size (Inches)
0.5″–4.0″
Thickness
~4–6 mm
Working Temperature
-40 °C to +205 °C
Shaft Diameter
12–100 mm
Warranty
1 Year
Inner Diameter
25–100 mm
Suitable For
Clean water, sewage, oil, mild chemicals
Temperature
-40 °C to +205 °C
Speed
Up to 15 m/s
Shaft Speed in RPM
~3,000 fpm
Temperature Range Deg C
-40 °C to +205 °C
Face Coating
Carbon/SiC/TC; optional patterned surfaces
Burgman Type
Equivalent to Burgmann MG910/D1‑G55
John Crane Type
Type 1B balanced elastomer bellows seal
Seal Wire
Incorporated in bellows design; no external wire
I Deal In
New Only
Feature
Unbreakable, Good Quality, Fine Finish
Product Code
84842000
Port
DIRECT or Courier
Delivery Time
1 or 2 days
Packaging Details
Safely packed in Carton box

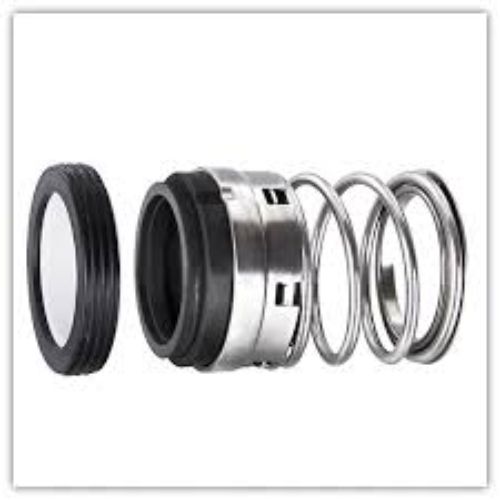

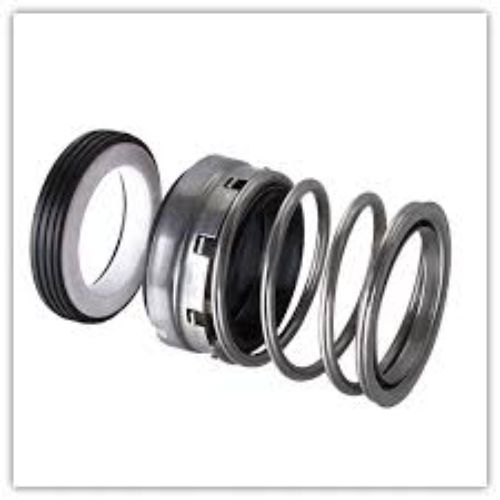

The Type 1B is a balanced, full-convolution elastomer bellows seal, part of John Crane’s iconic Type 1 series. It builds on the reliability of its unbalanced counterpart by offering enhanced pressure capability—up to 82 bar (1200 psi)—while maintaining performance under a wide range of temperatures and process conditions
Ideal for process pumps, mixers, compressors, agitators, and general rotary equipment in industries like:
-
Petrochemical
-
Chemical processing
-
Pulp & paper
-
Wastewater
-
Food & beverage
-
Power generation
