2,500.00 - 3,500.00 / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Industrial Seals |
| Surface of Application | Industrial |
| Click to view more | |
Product Details
Color
Silver,Black
Shape
Round
Material Grade
SS304
Finishing
Polished
Material
Stainless Steel
Condition
New
Pressure
24 bar
Usage
Pumps handling corrosive, cryogenic, or high-temp fluids
Certification
DIN 24960 / ISO 3069 / EN12756
Density
PTFE ≈ 2.2 g/cm³; SS ≈ 8 g/cm³
Packaging Type
Carton Box
Outer Diameter
14 mm - 70 mm
Technique
PTFE wedge, O-ring/pusher design, multi-spring, straight shaft fit
Working Pressure
24 bar
Sealing Type
Unbalanced PTFE wedge, multi-spring, O-ring/pusher seal
Size (Inches)
0.55″–3.94″
Working Temperature
–40 °C to +200 °C
Shaft Diameter
14 mm up to 100 mm
Warranty
1 Year
Inner Diameter
20 mm, 70 mm,
Suitable For
General chemical, refining, petrochemical, pharma, cryogenic, high-temp fluids
Temperature
–40 °C to +200 °C
Speed
~25 m/s
Pressure (Bar)
24 bar
Shaft Speed in RPM
≈ 5,000 fpm
Temperature Range Deg C
–40 °C to +200 °C
Face Coating
PTFE wedge; optional carbon/SiC/TC faces available
Burgman Type
Equivalent to Burgmann BT‑C56.KU
John Crane Type
59U – unbalanced DIN multi-spring PTFE wedge seal
Seal Wire
O-ring or PTFE wedge secondary seal—no wire spring
I Deal In
New Only
Product Code
84842000
Port
DIRECT or Courier
Delivery Time
1 or 2 days
Packaging Details
Safely packed in carton box

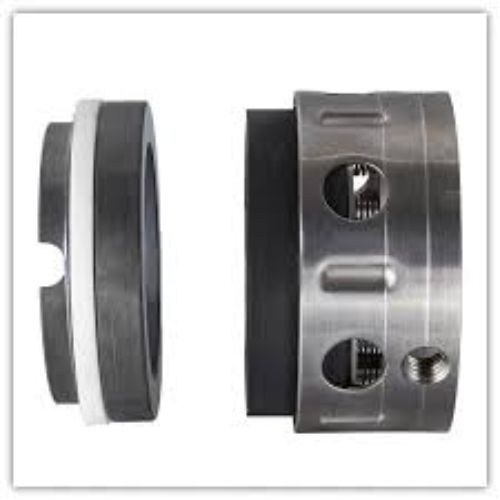

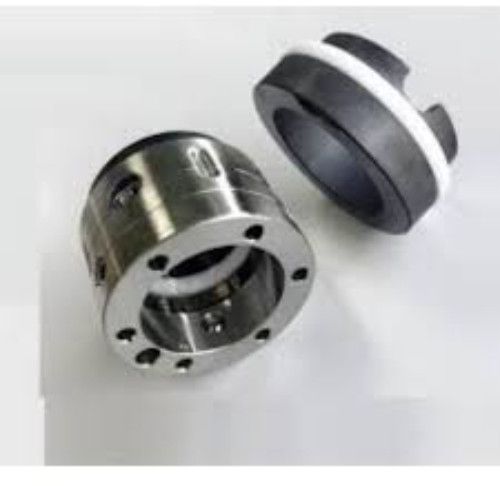

The Type 59U—also known as T59U—is a versatile, multi‑spring, unbalanced PTFE wedge mechanical seal designed according to DIN 24960 (ISO 3069) standards. It’s tailored for general low‑ to medium‑pressure duties across a wide range of rotating equipment—especially process pumps in chemical, petrochemical, refinery, and pharmaceutical industries
This compact pusher-style design fits neatly on straight-through shafts and handles moderate misalignment via multiple S-ring elastomers that maintain consistent face loading. Despite being unbalanced, it offers reliable performance in diverse service conditions
