2,500.00 - 3,000.00 / piece
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Industrial Seals |
| Usage | Industrial |
| Click to view more | |
Product Details
Color
Silver
Shape
Round
Material Grade
SS304
Material
Stainless Steel
Finishing
Polished
Condition
New
Pressure
17 bar
Automation Grade
Manual
Surface of Application
Industrial
Certification
ISO 9001:2008 Certified
Feature
Unbalanced design,Suited for low–medium pressure duties across oils, solvents, water, refrigerants,
Packaging Type
Carton Box
Outer Diameter
14 mm to 100 mm
Working Pressure
17 bar
Sealing Type
multi spring
Working Temperature
–40 °C to +230 °C
Shaft Diameter
14–100 mm
Warranty
1 Year
Temperature
–40 °C to 230 °C
Speed
25 m/s
Chemical Resistance
Yes
Pressure (Bar)
17 bar
Shaft Speed in RPM
2500 rpm
Temperature Range Deg C
–40 °C to 230 °C
I Deal In
New Only
Product Code
84842000
Port
DIRECT or Courier
Delivery Time
1 or 2 days
Packaging Details
Safely pack in Carton box

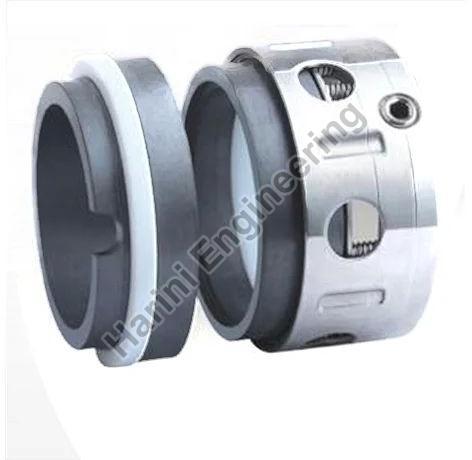

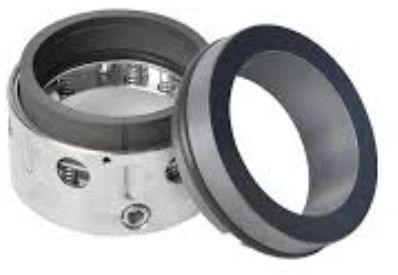

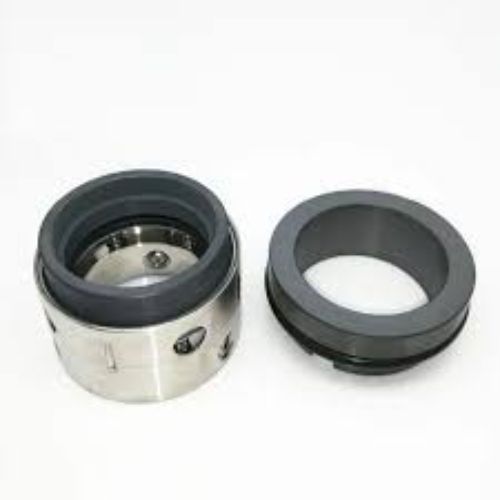

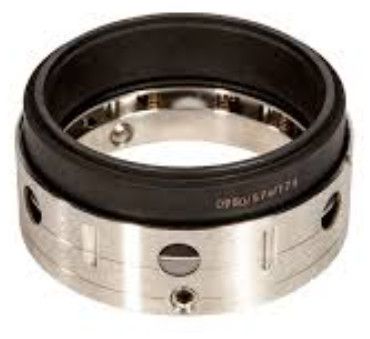

The Type 58U is a general-purpose, DIN-compliant, multi-spring O‑ring pusher seal, designed primarily for low- to medium-pressure duties in process, refinery, petrochemical, and general rotating equipment such as pumps. It meets the DIN 24960 (also known as EN 12756), ISO 3069, and API 610 standards, ensuring broad compatibility and performance reliability
Ideal for chemical, petrochemical, oil & gas, refrigeration, and water applications. It suits process pumps, vacuum pumps, compressors, agitators, and boilers in mid‑range pressure applications (≤17 bar). Its rugged multi-spring, compact design is well suited to rotating equipment within tight axial envelope requirements
