2,000.00 - 2,500.00 / piece
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Stainless Steel |
| Finishing | Polished |
| Shape | Round |
| Click to view more | |
Product Details
Color
Black, Silver
Condition
New
Pressure
up to 29 bar
Automation Grade
Manual
Usage
Pumps, mixers, agitators, compressors
Certification
ISO 9001:2008 Certified
Packaging Type
Carton Box
Outer Diameter
~1.8–6″
Working Pressure
Up to 29 bar
Sealing Type
Single Spring
Size (Inches)
0.500″ to 4.000″
Type
Industrial Seals
Country of Origin
India
Seal Width
~1.0–2.8 in,
Temperature Range Deg C
–40 °C to +205 °C
Face Coating
Not coated
Burgman Type
Equivalent to Burgmann MG920 / D1‑G50 series
John Crane Type
Type 2 (unbalanced) and Type 2B (balanced/high‑pressure)
Seal Wire
Mechanical drive band, spring balance, self-aligning
I Deal In
New Only
Product Code
84842000
Port
DIRECT or Courier
Delivery Time
1 or 2 days
Packaging Details
Safely packed in carton box

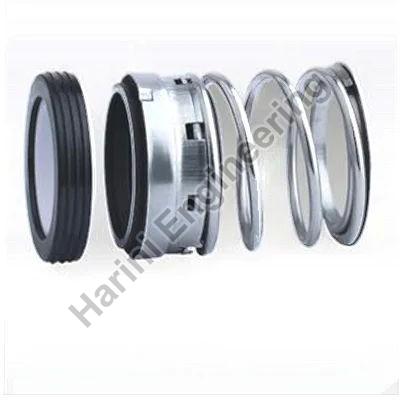

The John Crane Type 2 is a non‑pusher, elastomer bellows mechanical seal renowned for its extensive OEM use and impressive performance history. Designed for applications with limited seal chamber depth—such as pumps, mixers, agitators, and compressors—this seal excels in compact installations thanks to its low-profile design. It’s offered in single, double, or balanced configurations and is particularly noted for its compact working height enabled by an outside-mounted spring
The Type 2 seal is widely adopted across multiple industries due to its adaptability:
-
Pumping Systems: Ideal for centrifugal, process, water, wastewater, and slurry pumping where short seal chambers are common
