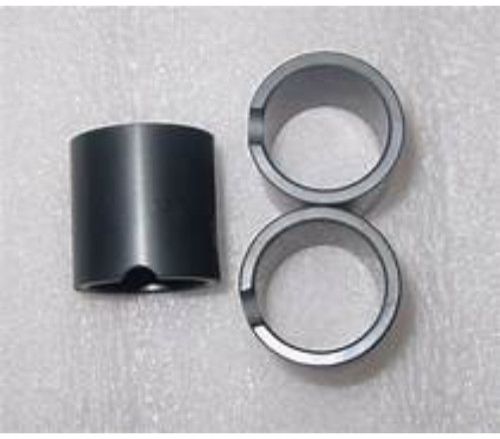

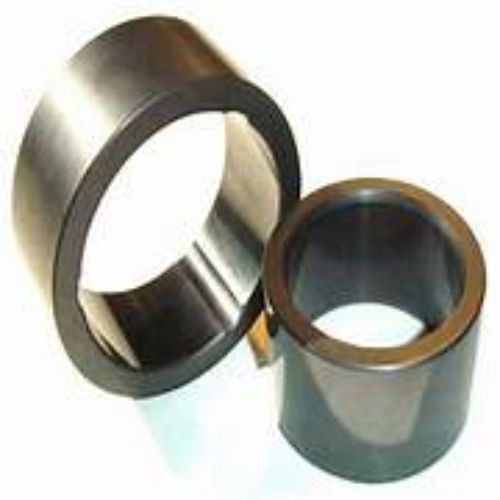

Silicon Carbide Bush

Link Copied
2,000.00 - 2,500.00 / Piece
Business Type Manufacturer, Exporter, Supplier
Country of Origin India
Specialities Impeccable Finish, Good Quality, Durable
Usage Industrial
Click to view more

Product Details

Shape
Cylindrical
Finishing
Polished
Material
Silicon Carbide
Color
Black
Certification
ISO 9001:2008
Length
10 mm to 100 mm.
Pattern
Plain
Density
3.1 g/cm³ f
Dimension
vary according to Specification
Packaging Type
Carton box
Hardness
2200–2400 HV
Outer Diameter
10 mm to 140 mm
Technique
sintering processes
Connection
Designed for press-fit or slip-fit installations
Working Pressure
up to 150 bar
Size (Inches)
0.5 inches (12.7 mm), 1 inch (25.4 mm), and 2 inches (50.8 mm).
Type
Sleeve Bushings
Thickness
1 mm to 10 mm
Frequency
Not applicable to bushings
Tensile Strength
275 MPa
Working Temperature
-20°C to 180°C.
Warranty
1 Year
Inner Diameter
16 mm, 30 mm, 65 mm, and 70 mm
Overall Height
Depends on specific design and application requirements
Corrosion Resistance
Yes
Rust Resistance
Yes
Maximum PV Value Limit
1.1 to 2.0 N/mm²·m/s
Product Code
84842000
Port
DIRECT or Courier
Delivery Time
1 or 2 days
Packaging Details
Safely pack in Carton box

Silicon carbide (SiC) bushings are advanced ceramic components renowned for their exceptional mechanical, thermal, and chemical properties. These bushings are integral in various industrial applications, including mechanical seals, pumps, and rotating equipment, where durability and reliability are paramount

Applications

  • Mechanical Seals: SiC bushings serve as seal faces in pumps and compressors, providing leak-proof operation under high pressure and temperature.

  • Bearings: Used in high-speed and high-load bearing applications due to their low friction and wear resistance.

  • Aerospace and Automotive: Employed in components exposed to extreme conditions, such as engine parts and braking systems.

  • Chemical Processing: Ideal for handling corrosive fluids in chemical plants, ensuring longevity and safety.

Advantages



  • Durability: Exceptional wear resistance leads to extended service life and reduced maintenance.

  • Performance: Maintains mechanical integrity at high temperatures, ensuring consistent performance.

  • Efficiency: Low friction reduces energy consumption and heat generation
