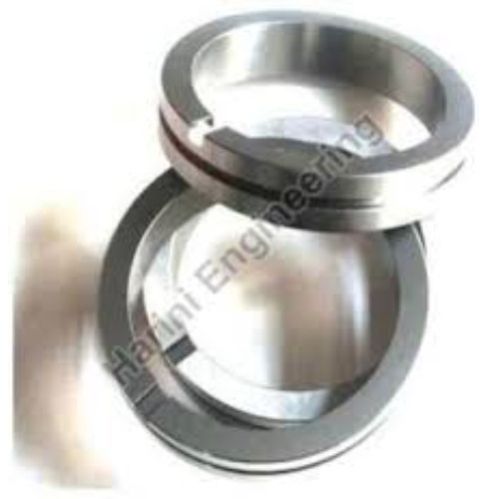

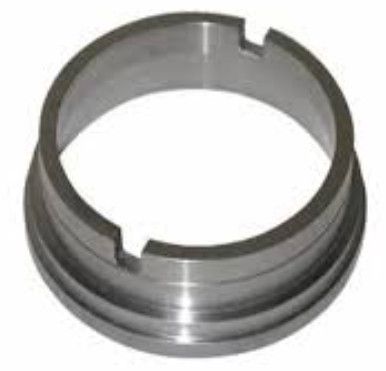

Tungsten Carbide Seal TC-BL2

Link Copied
1,000.00 - 1,500.00 / Piece

10 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Country of Origin India
Thickness 10-15mm
Color Silver
Click to view more

Product Details

Shape
Round
Material
Tungsten Carbide
Brand Name
Harini Engineering
Finishing
Polished
Surface Finishing
Fine finishing
Material Grade
Tungsten Carbide with Cobalt or Nickel binder
Condition
New
Automation Grade
Manual
Usage
Industrial applications,Industrial Use
Size
Customizable
Certification
ISI Certified
Packaging Type
Carton Box
Outer Diameter
10mm, 20mm; customizable
Working Pressure
Up to 10 bar
Sealing Type
Mechanical
Specialities
Corrosion-proof, durable, excellent quality,Corrosion Proof, Excellent Quality, Fine Finishing
Overall Dimension (LXBXH)
390X170X360mm
Type
Industrial Seals
Tensile Strength
Up to 2450 N/mm²
Working Temperature
-30°C to 200°C
Warranty
1 Year
Inner Diameter
40mm, 50mm; customizable
Noise Level
Low
Suitable For
Pumps, compressors, agitators
Net Weight
Varies by size
Chemical Resistance
Yes
Pressure (Bar)
10 Bar
Shaft Speed in RPM
Up to 3000 RPM
Seal Width
Customizable
Seal Length
Customizable
Max Hardness
Up to HRA 92.0
Temperature Range Deg C
-30°C to 200°C
Product Code
84842000
Port
DIRECT or Courier
Delivery Time
1 or 2 days
Packaging Details
Carton box

The Tungsten Carbide Seal TC-BL2 is a high-performance mechanical seal component engineered for demanding industrial applications. Manufactured by Harini Engineering in Tirupur, Tamil Nadu, this seal is designed to provide exceptional durability, wear resistance, and corrosion protection in harsh operating environments.

The TC-BL2 seal is suitable for a wide range of industrial applications, including:



  • Oil Refineries and Petrochemical Plants: Handling aggressive chemicals and high-temperature fluids.

  • Fertilizer Plants: Managing corrosive substances and maintaining system integrity.

  • Breweries and Pulp Mills: Ensuring sanitary conditions and preventing contamination.

  • Mining Operations: Withstanding abrasive materials and harsh environments.

  • Pharmaceutical Industry: Maintaining sterile conditions and resisting chemical degradation.

  • High Hardness and Wear Resistance: Tungsten carbide's superior hardness ensures minimal wear over time, even in abrasive conditions.

  • Corrosion Resistance: The seal's material composition provides excellent resistance to corrosive chemicals and fluids.

  • Thermal Stability: Maintains structural integrity at elevated temperatures, ensuring consistent performance.

  • Low Thermal Expansion: Reduces the risk of seal failure due to thermal fluctuations.

  • Customizable Binder Options: Available with cobalt or nickel binders to suit specific application requirements.
